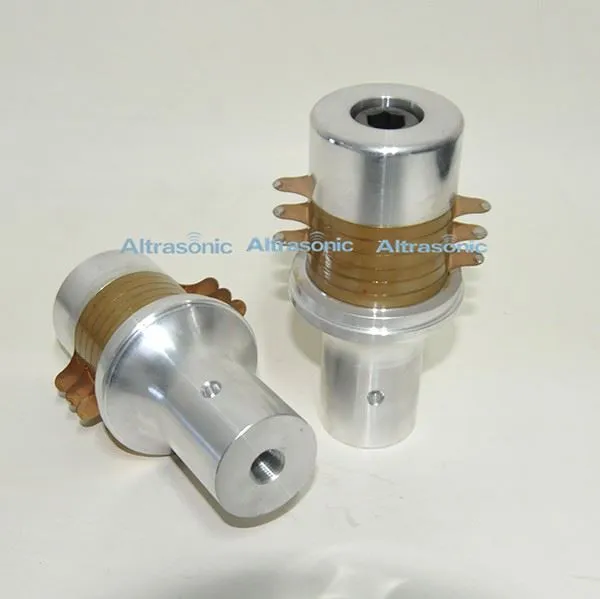

High Power 20kHz Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine
High Power 20kHz Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine
Description :
Ultrasonic device consists of ultrasonic generator , transducer , booster and work horn. The transducer is an energy converter , which can converted the high frequency , high power current , output of power supply into reciprocating mechanical energy of the ultrasonic vibration , the vibration frequency output of drive power with the same frequency as the current.
Specification :
| Frequency | 20kHz |
| Max Power | 2000watt |
| Ceramic Diameter | 50 mm |
| Qty of Ceramic | 6 pcs |
| Connect Screw | 1/2-20UNF |
| Capacitance | 19~21nF |
| Max Amplitude | 12um |
Advantage :
Imported ceramic chip
Titanium , aluminum , steel optional
One years warranty
