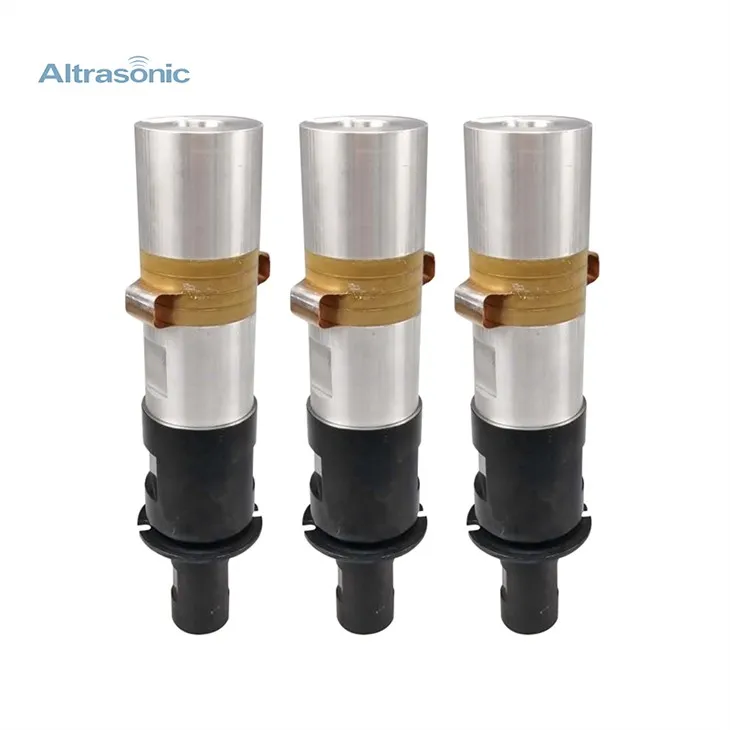

20K NTK Type High Frequency Ultrasonic Transducer
The 20K ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
Send Inquiry
Product Introduction
20K NTK Type High Frequency Ultrasonic Transducer
Description:
The ultrasonic converter transducer consists of bolt, back cover, ceramic, electrode slice and front cover.Piezoelectric ceramic plate is the core part of the transducer. The principle of the transducer is based on the piezoelectric effect of the ceramic plate. Our transducers are made of Imported ceramic discs and superior aluminum raw materials.
Specification:
| Model | 5020-4Z |
| Frequency | 20 |
| Power | 1500W |
| Joint bolt | M18*1.5 |
| Ceramic diameter | 50mm |
| Qty of ceramic | 4pcs |
| Ampulitude | 10um |
| Capacitance | Yellow:11-13nF |
