Robotic Ultrasonic Cutting For Synthetic Fabrics
Robotic Ultrasonic Cutting For Synthetic Fabrics
Description:
Due to the characteristics of ultrasonic cutting, all fabrics finish with a superb edge seal, which most importantly prevents fraying. This is due to the intense heat that is rapidly concentrated on the cutting/sealing head. No other cutting/sealing methods can compare to this edge sealing ultrasonic cutting technology.
Specification:
| Model | HS-C30 |
| Frequency | 30kHz |
| Output Power | 500watt |

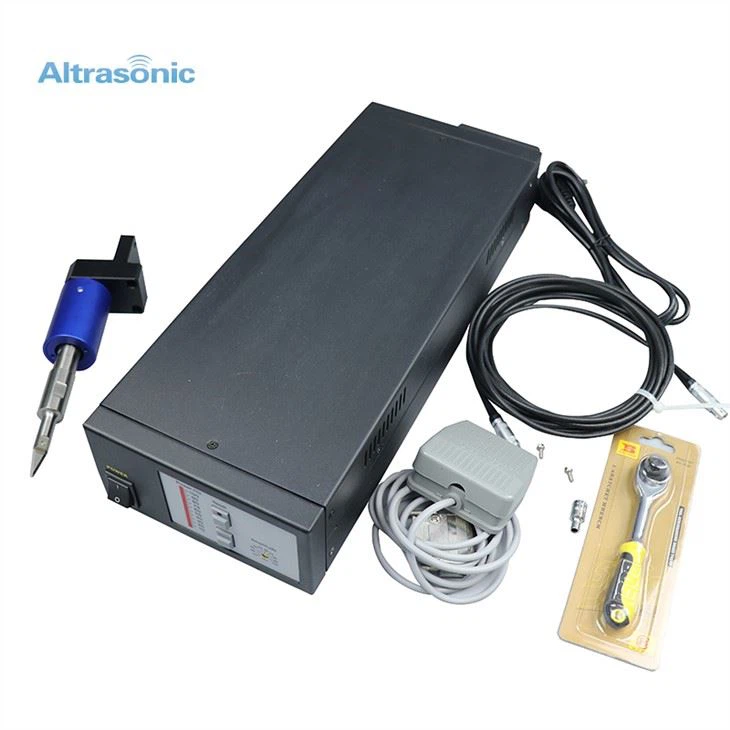

| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |

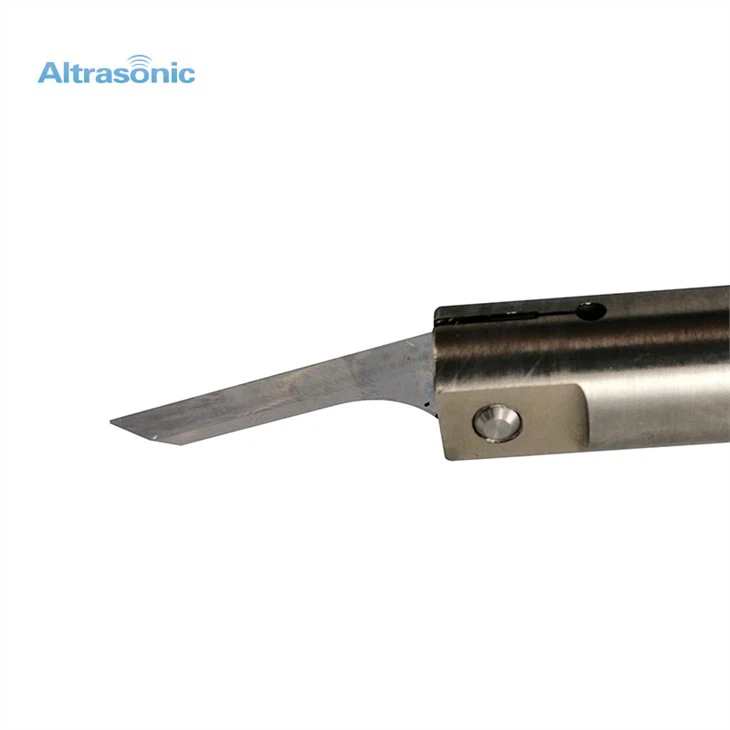

| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 11KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch1pc; 1.5mm special hex wrench 1pc; Screw M3×4L 2pcs |
| Material of cutter | titanium alloy |

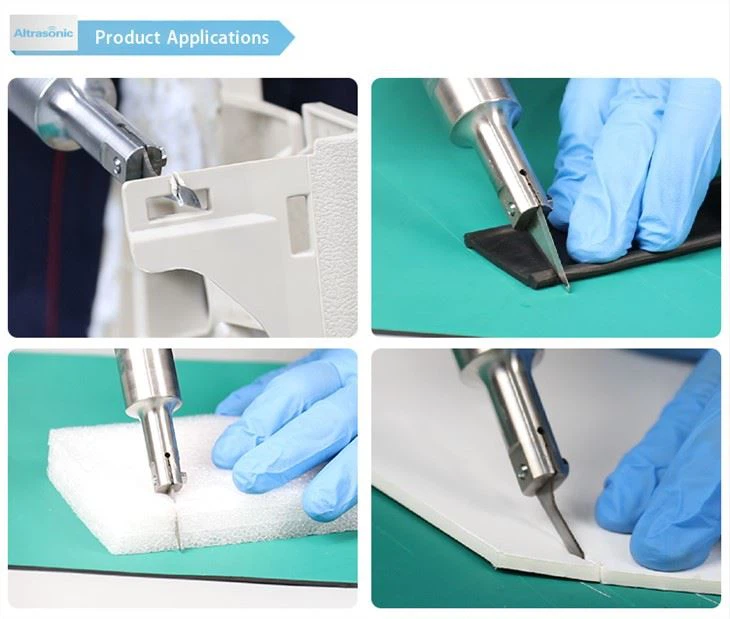

Application:
1. Non-woven fabric or weaving, cut the textile, dress lace and cloth. Edge is cut while sealing.
2. Cut clothing
3. Curtains and cover the fabric
4. Automobile carpet
Advantages:
1. It can seal the fabric during cutting without deformation or warping.
2. No knobby, no silk fabrics, no wrinkles, no rough edges cut.
3. Simple operation, no need for professional people, saving time and labor
Problem and solution:
Item | Problem | Cause description | Solution |
Power switch to “I” the light is out | Power plug loose | Plugging in | |
Power line break | Fix it yourself or send back | ||
Power switch bad contact | |||
Fuse is broken | |||
Power light and running light are OK | Air plug and socket not connected | Tighten the connection position | |
Handle have abnormal Sound | Clean the card slot, use new blade | ||
Intermittently use, but the handle keeping hot | Please send it back | ||
Out-put air plug break | |||
Screw loose | Tighten the screw | ||
Running light is ok | Running switch bad | Please send it back |
