Ultrasonic Wire Harness Metal Welder Copper Wire Machine Auto Eleical Copper Welding Machine
Ultrasonic Wire Harness Metal Welder Copper Wire Machine auto eleical copper welding machine
Specification
| Model No# | HS-2020 | HS-2030 | HS-2040 |
| Power | 2000W | 3000W | 4000W |
| Welding area | 0.5-16mm² | 0.5-20mm² | 1-30mm² |
| Working air pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
| Frequency | 20kHz | 20kHz | 20kHz |
| Voltage | 220V | 220V | 220V |
| Weight | 18KGs | 22KGs | 28KGs |
| Working head Size | 530*210*230mm | 550*220*240mm | 550*250*240mm |
| Machine Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
Advantage
One of the most important advantages of ultrasonic welding is the lower temperature. The generation of temperature is inevitable, it is only caused by friction, which is only 1/3 or 1/2 of the melting point of the metal. At the low temperature generated by the welding process, the metal wire retains its original performance due to annealing and the low temperature does not damage the insulation of the wire; in addition, the lower temperature also means that the thin metal can be welded to the thick metal Without causing damage to thin metal. These are very important in wire harness production.

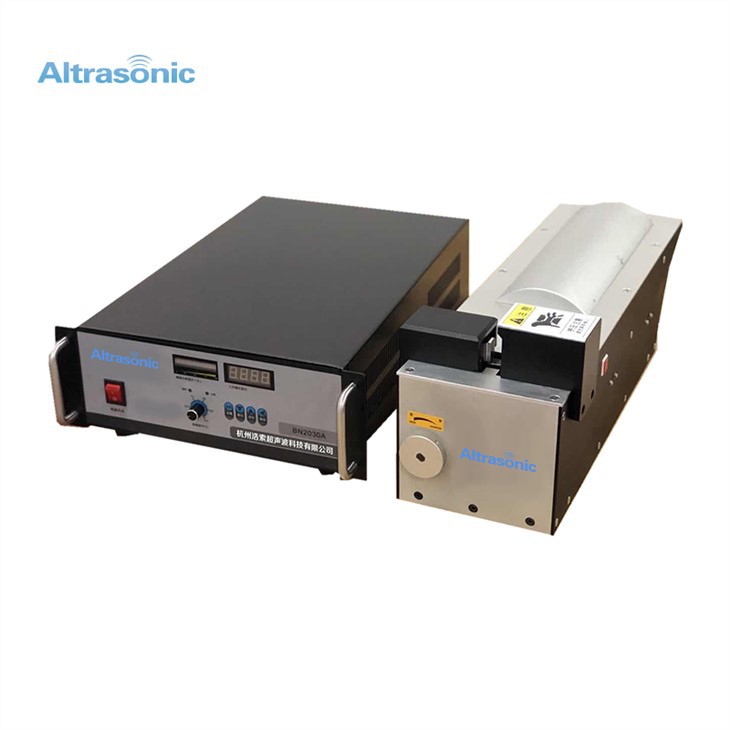

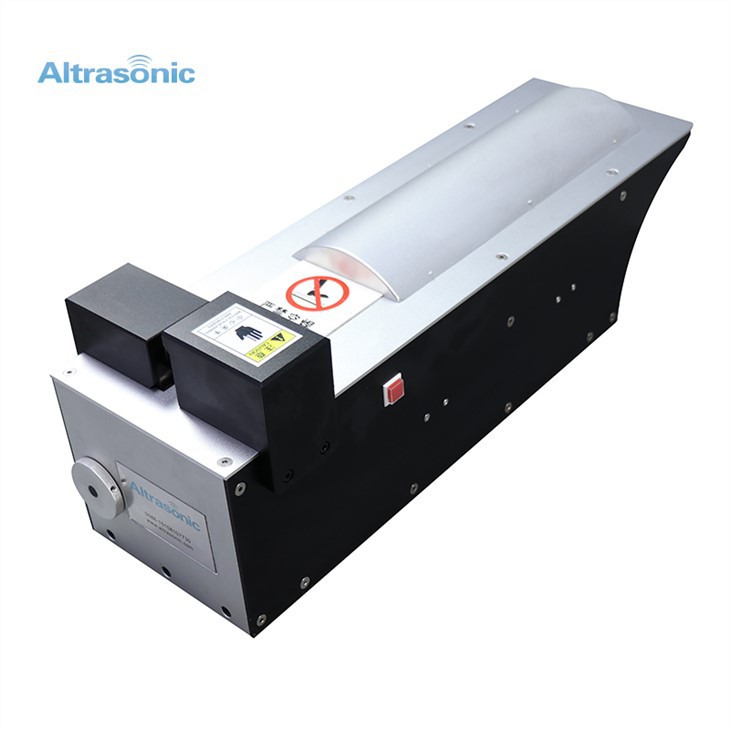

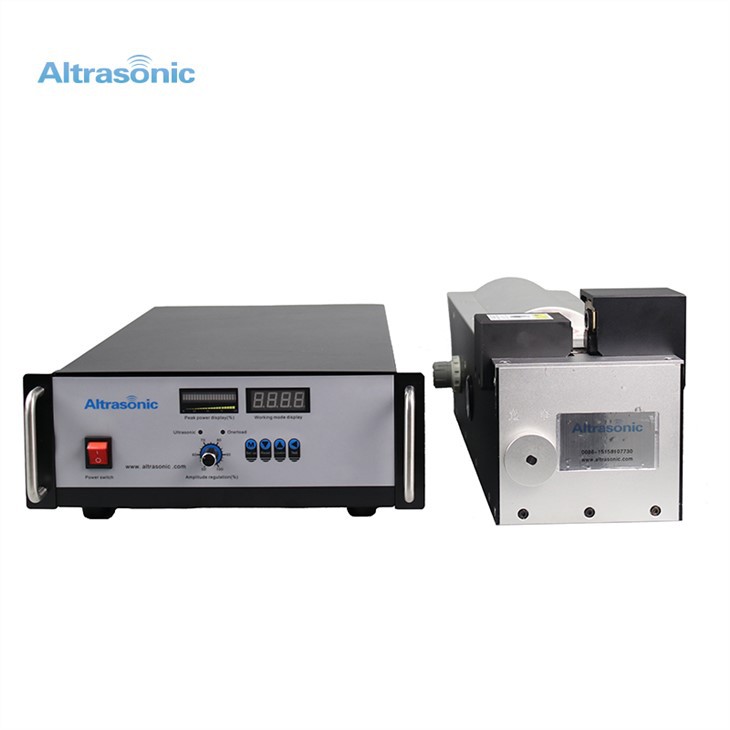

Product display
Hot Tags: ultrasonic wire harness metal welder copper wire machine auto eleical copper welding machine, China, manufacturers, suppliers, factory
