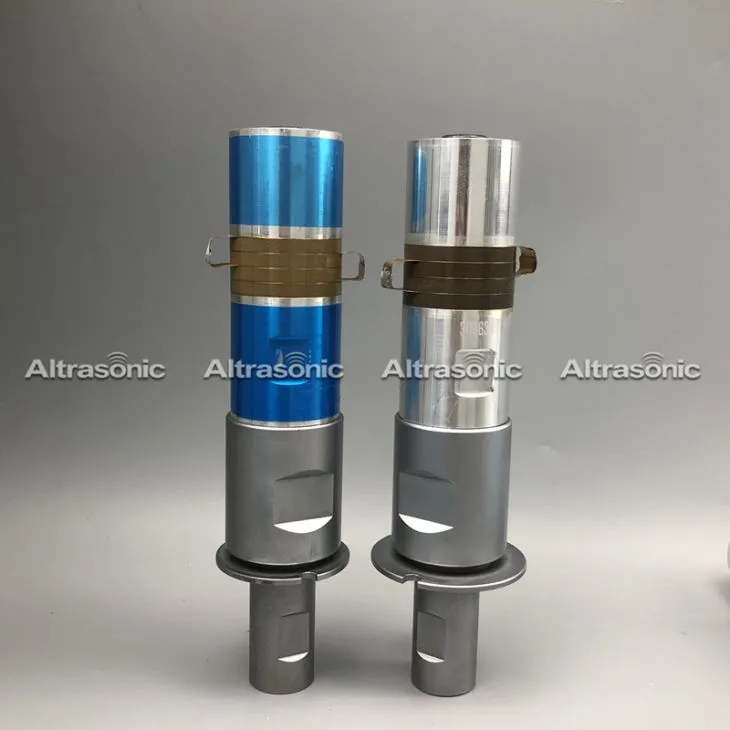

20kHz Ultrasonic Vibrator (transducer Plus Booster)
This 20kHz ultrasonic vibrator (transducer plus tool head) can be welded with a mask machine. It is a very important part in the mask machine.
Send Inquiry
Product Introduction
20kHz ultrasonic vibrator (transducer plus booster)
Product Details:
Model | HS-5020-4Z |
Frequency | 20khz |
Output Power | 2000watt |
Joint Bolt | M18*1.5 |
Ceramic Disc Diameter | 50mm |
Quantity of Ceramic Discs | 4pcs |
Capacitance | 11-17nf |
Amplitude | 8um |
Application | Welding,mask machine |
Advantages:
1. The transducer uses high-quality titanium alloy material, high strength, stable and reliable use;
2.Pressed from imported ceramic wafers
3. The booster is made of steel, which is durable
4. Small fever, large temperature range; small performance drift, stable operation
Application:
Hot Tags: 20khz ultrasonic vibrator (transducer plus booster), China, manufacturers, suppliers, factory
