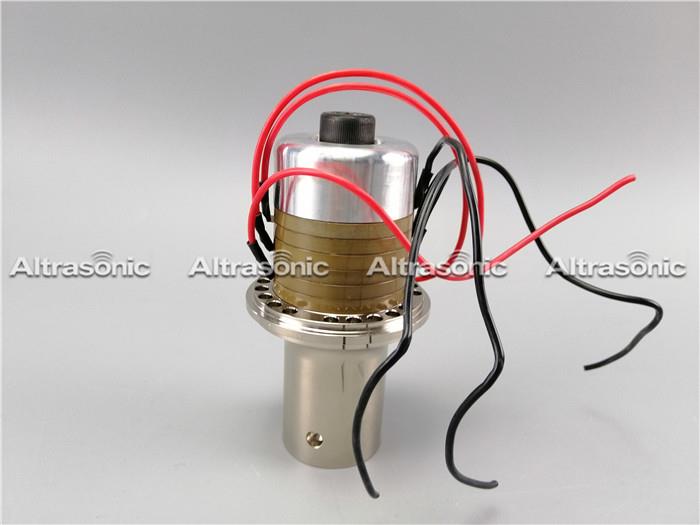

20Khz Ultrasonic Transducer Replacement CJ20
Description: Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.
Send Inquiry
Product Introduction
Suitable For 20Khz Ultrasonic Welding Machine
Description:
Altrasonic applies the highest standards of quality and safety during development and in the manufacture of ultrasonic transducers. These high standards which we always strive to maintain and evolve are a key part of our success. And our customers benefit from them especially.
Specification:
Model | Replacement CJ20 |
| Frequency | 20Khz |
| Power | 4000W |
| Qty of Ceramic | 6pcs |
| Ceramic diameter | 50mm |
| Capacitance | 16-18nF |
| Amplitude | 20um |
| Joint bolt | 1/2-20UNF |
Hot Tags: 20Khz Ultrasonic Transducer Replacement CJ20, China, manufacturers, suppliers, factory
