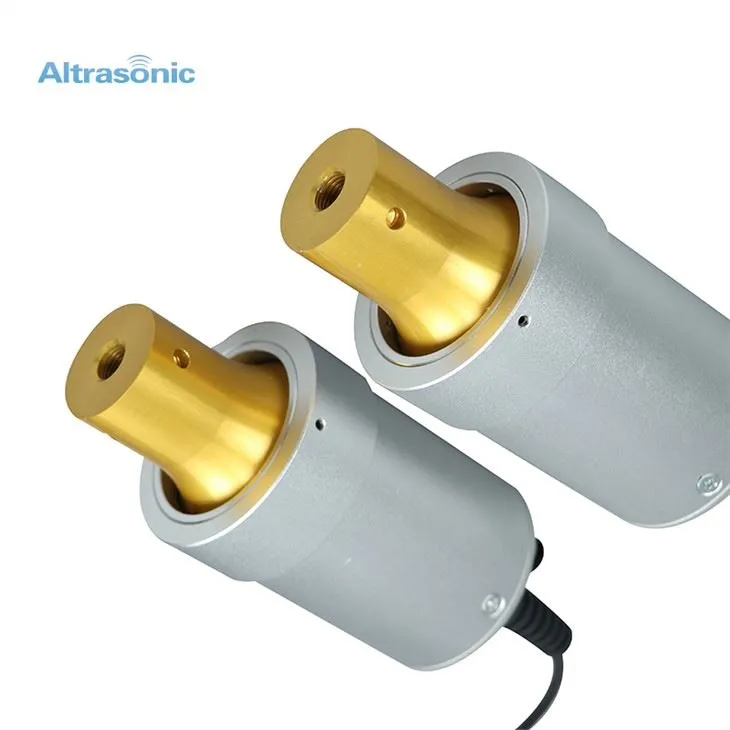

20kHz Replacement Dukane41S30 Ultrasonic Welding Transducer
20kHz Replacement Dukane41S30 Ultrasonic Welding Transducer
Specifications:
| Model | HS-D41S30 |
| Frequency | 20khz |
| Output power | 1000-3000watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50mm |
| Amplitude | 20um |
| Capacitance | 11-12nf |
| Application | welding machine |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocksThe 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.
This kind of sandwich transducer generates stable ultrasonic waves when the load changes, which is the most basic and main method to obtain a power ultrasonic drive source.
Advantages:
1. Low-attenuation, anti-rotation mounting
2. Easy to assemble without special tools
3. Stable design to protect sensitive ultrasonic components
