Ultrasonic Sonochemical Reaction And Synthesis Equipmemt

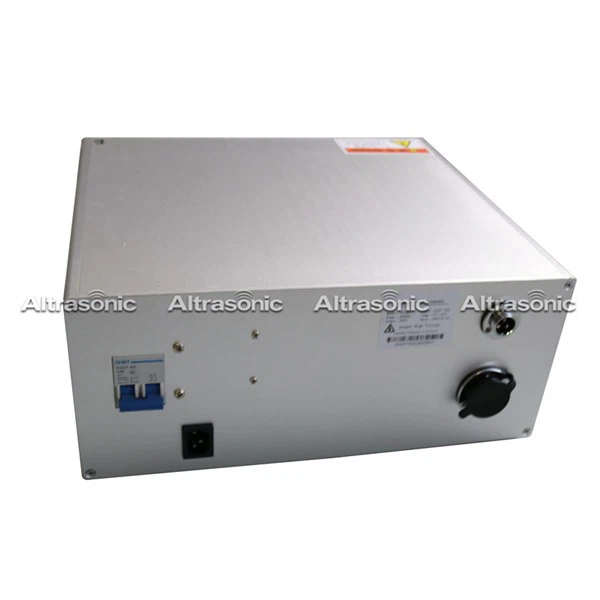

Ultrasonic Sonochemical Reaction and Synthesis Equipment
Description:
The ultrasonic sonochemical reaction and synthesis equipment is based on the principle of cavitation, that is, the formation, growth, and implosive collapse of bubbles in a liquid. Cavitational collapse produces intense local heating , high pressures, and enormous heating and cooling rates and liquid jet streams.
Specification:
Model | HSS20-500-L | HSS20-1000-I | HSS20-1500-I | HSS20-2000-I | HSS20-3000-I |
Frequency | 20±1 kHz | 20±1 kHz | 20±1 kHz | 20±1 kHz | 20±1 kHz |
Power | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
Temperature | 150 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
Pressure | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
Max Capacity | ＞ 100M L/Min | ＞ 5 L/Min | ＞ 15 L/Min | ＞ 20 L/Min | ＞ 30 L/Min |
Material Of Tip Head | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Application:
Cosmetics
Skin Lotions
Pharmaceutical Ointments
Varnishes
Paints
Lubricants
Fuels

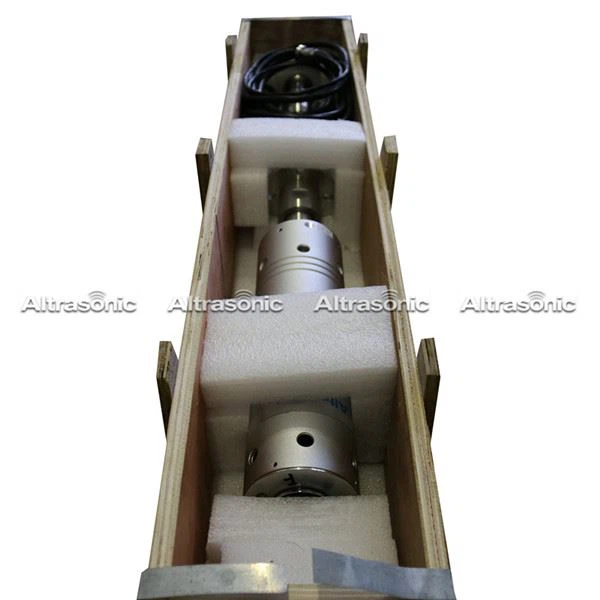

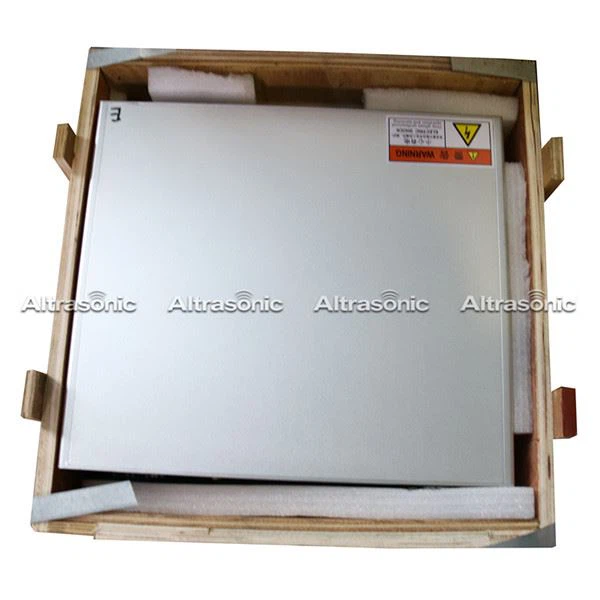

Transport and Packaging:
