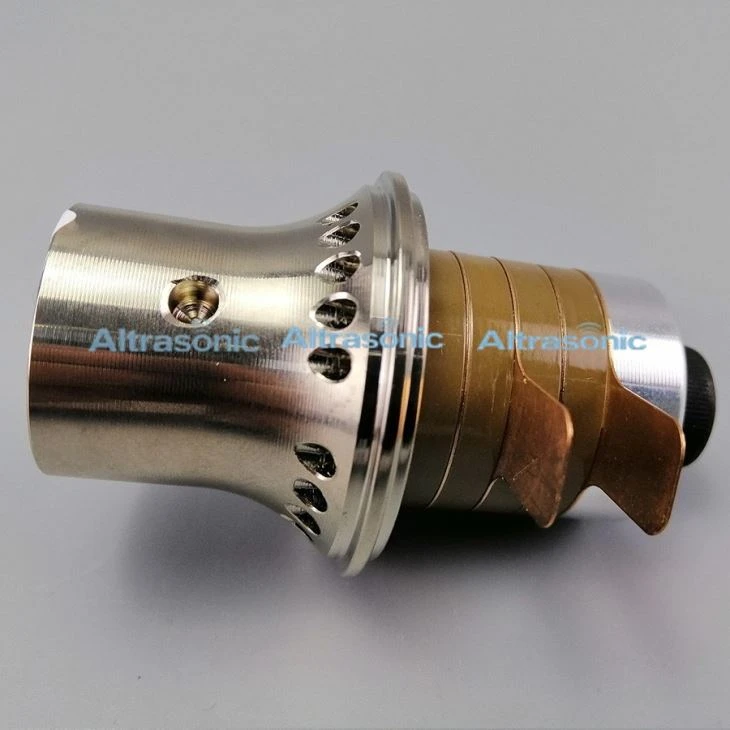

35KHz Pizeo Ultrasonic Welding Converter
35KHz Pizeo Ultrasonic Welding Converter



Description:
The ultrasonic device consists of ultrasonic converter, booster and working horn.It is an energy converter, which can convert the ultrasonic vibration of high frequency, high power current and power supply into reciprocating mechanical energy.
Specification:
Model | HS-2535-4D |
Connect screw | M8 |
Ceramic diameter | 25mm |
Qty of ceramic | 4pcs |
Frequency | 35Khz |
Capacitance | 3.9-4.3nf |
Application | Welding machine |
Power | 500W |
Amplitude | 6um |
Application:
Piezoelectric ultrasonic converters are used in a wide range of applications. In healthcare applications, piezoelectric ultrasound transducers provide functions such as ultrasonically breaking kidney stones and removing plaque. In addition, they are used to make accurate measurements to identify defects and other anomalies detected between the ultrasonic transmitter and receiver.
Warranty:1year.
