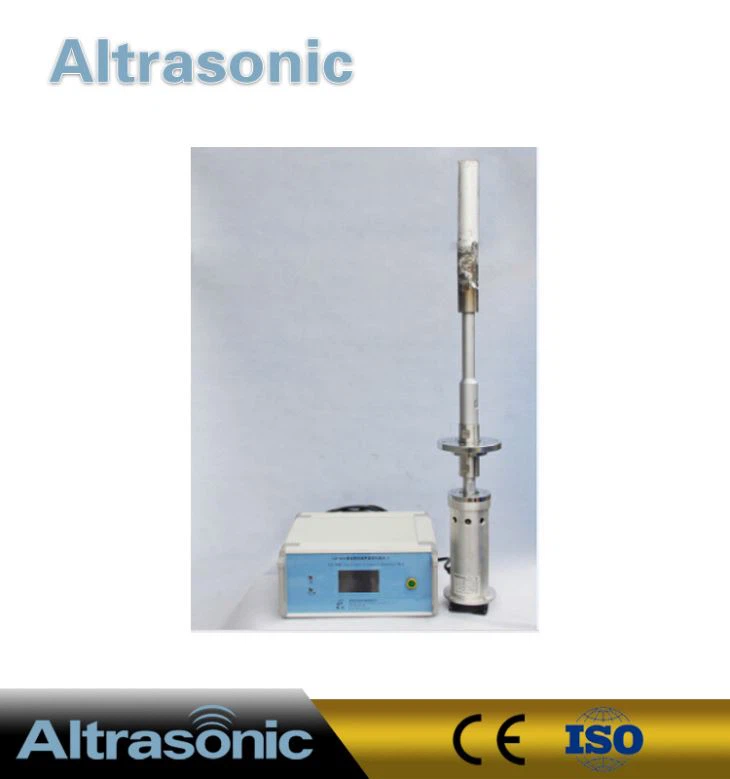

Industrial Ultrasonic Treatment System

Name: Industrial Ultrasonic Treatment System
Brand: Altrasonic
SKU: 74382428

Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design.

Send Inquiry

Chat Now

Product Introduction

004

003

005

002

Description:

The development of graphene industry demand high quality graphene urgently;(The traditional way of producing need to add more oxidant and reducing agent, while the ultrasonic exfoliation of graphite can greatly reduce the additive, greatly improve the puirty and reduce the size of graphene.)

Altrasonic equipment focused on the r&d of high power ultrasound applications.

Altrasonic has absolute leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Specifications:

Model	HSS20-500	HSS20-1000-L	HSS20-1000	HSS20-1500	HSS20-2000	HSS20-3000
Frequency	20Khz	20Khz	20Khz	20Khz	20Khz	20Khz
Power	500 W	1000 W	1000 W	1500W	2000W	3000 W
Voltage	220V	220V	220V	220V	220V	220V
Temperature	150 ℃	150 ℃	150 ℃	300℃	300℃	300 ℃
Pressure	Normal	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	＞10 W/cm²	＞10 W/cm²	＞10 W/cm²	＞30 W/cm²	＞40 W/cm²	＞60 W/cm²
Max capacity	＞ 500ml/Min	＞ 2 L/Min	＞ 5L/Min	＞ 15L/Min	＞ 20L/Min	＞ 100 L/Min
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
