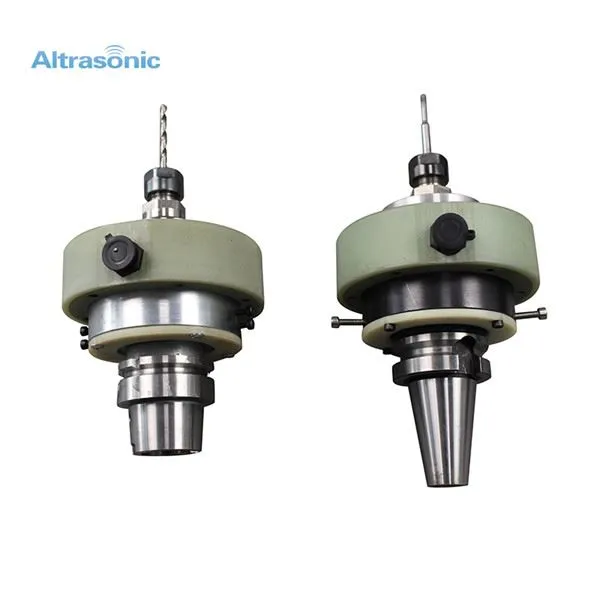

Non Traditional Machining Micro Drilling Process

20K Metal Driller Device Ultrasonic Drilling Milling Machine Long Life
High Speed Ultrasonic Drilling Machining High Hardness Steel Machining for Alloy Steel
20K Ultrasonic Drilling Milling Machine

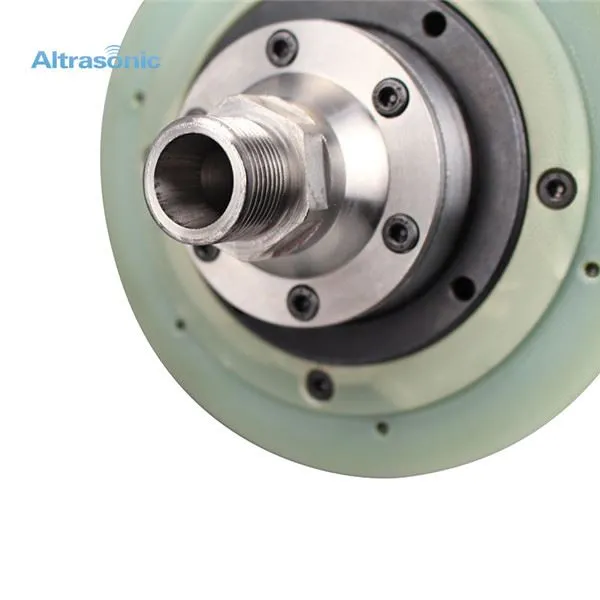

20K High Quality Metal Driller Device Ultrasonic Drilling Milling Machine

Non Traditional Machining Micro Drilling Process

20K Metal Driller Device Ultrasonic Drilling Milling Machine Description: The transducer vibrates the sonotrode at low amplitudes and high frequencies. The sonotrode is usually made of low carbon steel. A constant stream of abrasive slurry flows between the sonotrode and work piece. This flow of slurry allows...

Send Inquiry

Product Introduction

20K Metal Driller Device Ultrasonic Drilling Milling Machine Long Life

Technical Parameters:

Frequency	20 Khz
Output Power	500 W
Voltage	220 V/110V
Switch	Handle or foot switch
Power Adjusting	Step or continuous
Working Time Control	24 Hours
Weignt	30 KG ( Determined by the size of the horn )
Generator	Digital Generator

Principle :

A technique known as ultrasonic drilling milling machine can help overcome the challenges associated with traditional CNC machining. Ultrasonic machining centers* incorporate technology to cost-effectively machine ceramic components. Ultrasonic machining involves adding an up-and-down oscillation to the rotating tool, which allows for a freer cutting of these very hard materials

Advantages:

* Higher cutted surface quality Ra,

* Increase of geometrical precision,

* Smaller burrs are created,

* Tool life-circle is increased friction reduction between the tool and cutting chip

* Further reduce the cutting force, which is suitable in cutting brittle materials

Applications :

l Glass

l Sapphire

l Alumina

l Ferrite

l PCD
