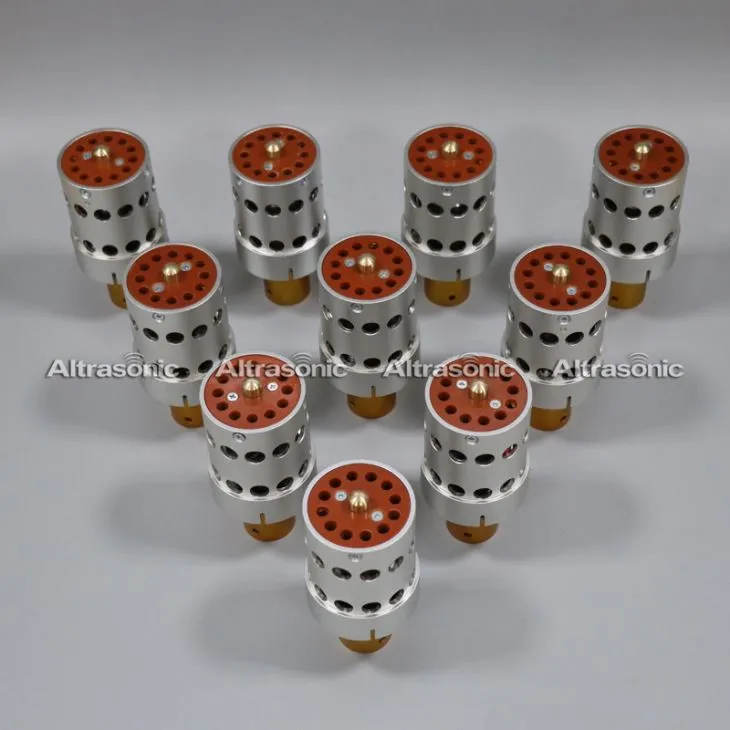

Ultrasonic Core 20Khz Replacement Branson Transducer For Automotive Parts

Ultrasonic Core 20Khz Replacement Branson Transducer For Automotive Parts

Description: Ultrasonic device consists of ultrasonice converter, booster and work horn. The converter is an energy which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.

Chat Now
Product Details

Ultrasonic Core 20Khz Replacement Branson Transducer For Automotive Parts


Description:


The 20Khz Replacement Dukane 110-3122  applied to Dukane type ultrasonic welding machine.

You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.The housing can be custom - made according to your special requirements.

All of the parts are all new.The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.




Specification:

ModelHSD110-3122
Frequency20Khz
Power2000watt
Joint bolt1/2-20UNF
Ceramic diameter50mm
Qty of ceramic4pcs
Capacitance11nF
Amplitude20um
Applicationwelding machine


Applied Range:


Replacement ultrasonic converter for Dukane 110-3122,
for use with all 20KHz 2000 and 2000X actuator and IW systems.

PS:we can also customize depend on your requirements.
