Ultrasonic Impedance Analyzer For Ceramic Testing

Ultrasonic Impedance Analyzer For Ceramic Testing

The proper frequency and impedance adjust is indispensable for all ultrasonic devices. The frequency depends mainly on dimensions (e.g.: length of the sonotrode) and the impedance of the quality of material used, assembly, and coupling of the acoustic sets’ parts. Deviations indicate the need for fine tuning, cleaning, re-gripping or re-assembly.

Chat Now
Product Details

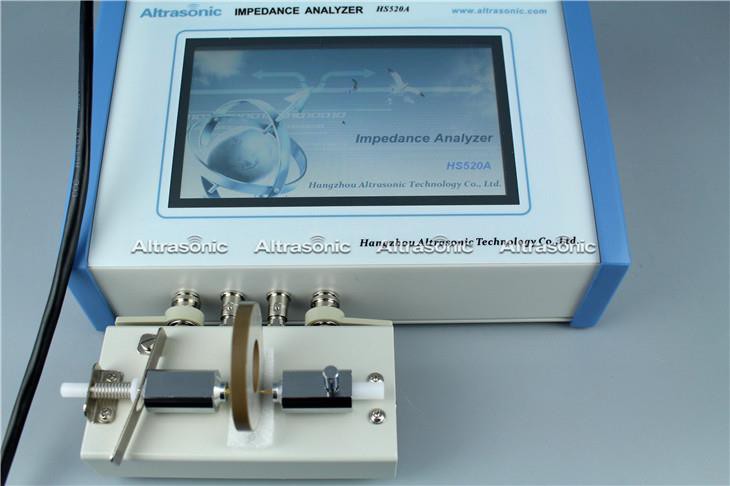

Ultrasonic Impedance Analyzer for Ceramic Testing

ultrasonic impedance analyzer03.jpgultrasonic impedance analyzer15.jpg

Description :

The TRZ Horn Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. The TRZ is for these elements as an oscilloscope is for the electronics.



Specification:



Parameters and Graph:

ultrasonic horn analyzer.png


Application :

* Operation

* Sonotrode tuning

* Test of transducers

* Test of acoustic sets

* Test of piezo ceramics

* Predictive maintenance


Automatic testing line

The instrument has two kinds of communication with PLC in the automatic testing line.

1. 232 communications

2. IO communication mode, aside the instrument set a relay input and output for a relay.


Port description:

There are three ports on the right side of the instrument, from top to bottom

1. USB port: for access to U disk, you can save the measurement data, and you can also save the excel parameters form( automatic production line automatically saved)

2. 232 port: Connect PLC and 232 port interface.

3. 232 port: Communication interface of computer and instrument.(Attached: HS520A can still operate on the computer such as HS70A, and the software is fully compatible with previous)



Advantages:

*  Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.

*  Allows the quality control of ultrasonic transducers reducing technical assistance.

*  Makes fast and accurate manufacturing of transducer possible.

*  Easy operation .

*  Can connect to PC operation for datas storage.


Our workshop:




CE Certification:


Packing&shipping:




Payment:


FAQs:

Q:What the quantity of max scan points and minimum scan poins?

A:The max scan points is 3200, the minimum scan points is 600.


Q:Is there any coordinate axis on the screen?

A:The screen will not show the coordinate axis, it will show in the PC operation software.

For the software, we will send to you for free


Q:What is Fs and Fp means?

A:Fs means resonant frequency, Fp means anti-resonant frequency.


Q:Do you have the test video about the horn analyzer?

A:Yes, we have videos for testing transducer and ceramic, just inform us your email ADD and we will send it to you.
